Bag Filter Housings

Side-Entry Bag Filter

Review an actual JINLV equipment photograph and submit your process conditions for the appropriate configuration.

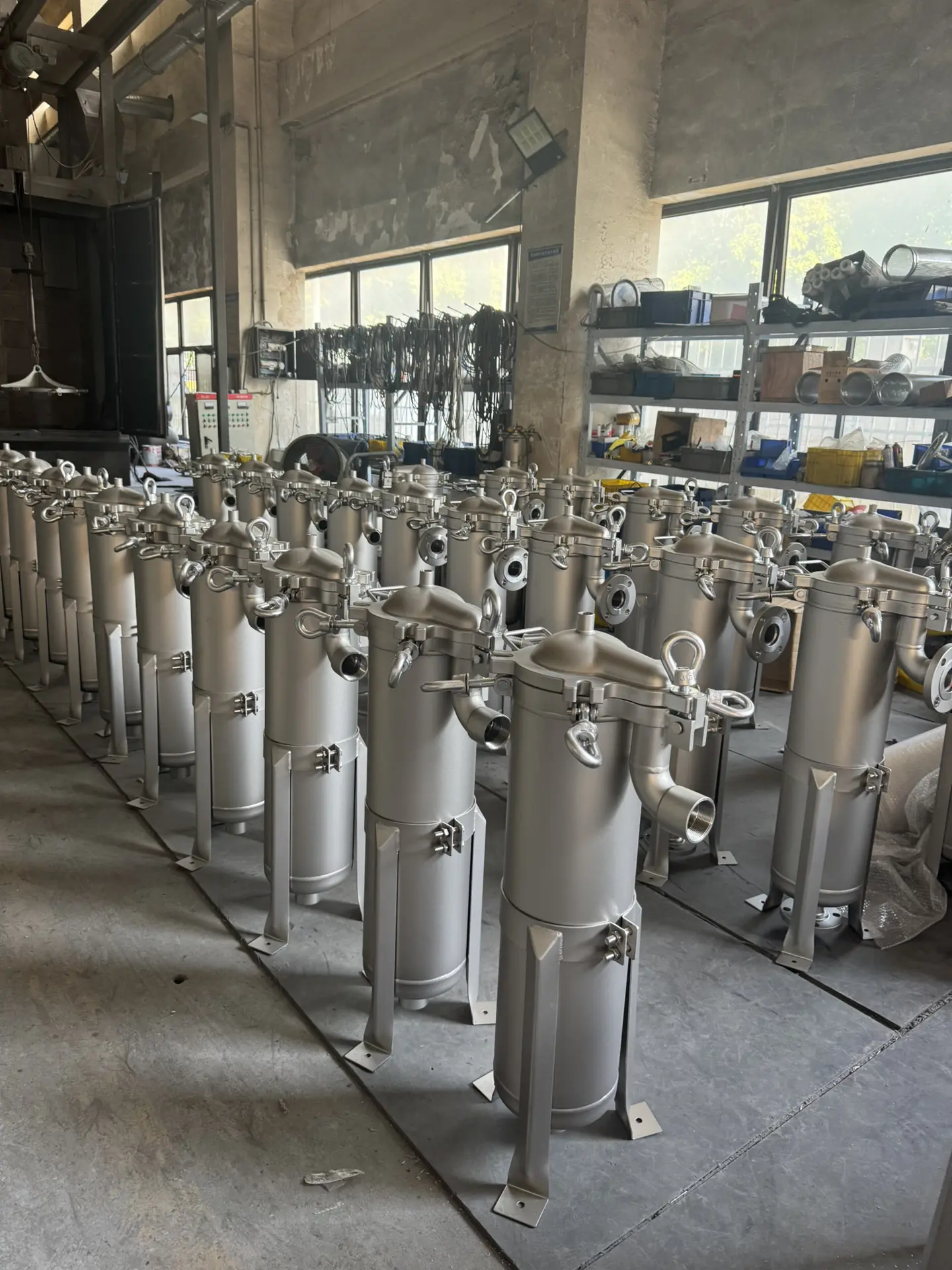

Source-library photograph for JINLV Side-Entry Bag Filter
Actual equipment photo from the supplied JINLV image library. Final project construction is confirmed by quotation and approved drawing.
Current product range

Side-Entry Bag Filter

This product appears in the current classification framework under Bag Filter Housings. The pictured equipment is a source-library example; project specifications are determined from operating data and the approved design.

Request this configurationCompare this family →
Documented construction

Side-entry piping layout

The JINLV bag-filter catalogue illustrates a side inlet with a lower outlet for this construction. Match the actual nozzle orientation and installation space to the project piping; do not assume the catalogue example fixes the delivered connection dimensions.

Catalogue construction: side-entry bag filter. Source: JINLV Bag Filter Series catalogue. Final values and interfaces require the project quotation and approved drawing.

Engineering review

Design questions for Side-Entry Bag Filter

These are the points to confirm for this product type. They are questions, not published equipment specifications.

  1. Confirm inlet orientation and available piping space.
  2. Confirm filter bag size, seal geometry and change-out clearance.
  3. Confirm wetted material and cleaning requirements.
Evidence boundary

What is confirmed on this page

The current product name and family come from the supplied classification framework; the photograph comes from the matching JINLV image folder.

Confirm before quotation

  • Fluid and solids or filter-medium compatibility
  • Normal and peak flow
  • Operating pressure and temperature
  • Material, seals and surface requirements
  • Element count, closure, piping and connection details
  • Controls, cleaning sequence and maintenance clearance

No model-specific pressure, flow, size, filtration accuracy or certification scope is inferred from the photograph.

Within Bag Filter Housings

Compare related products

See all Bag Filter Housings →
