Swing-Arm Bag Filter
Review an actual JINLV equipment photograph and submit your process conditions for the appropriate configuration.
Swing-Arm Bag Filter
This product appears in the current classification framework under Bag Filter Housings. The pictured equipment is a source-library example; project specifications are determined from operating data and the approved design.
Supported lid for multi-bag service
The catalogue shows a swing-arm multi-bag vessel in which the arm assists cover movement. Bag count and lifting geometry vary by configuration; confirm the swing envelope, support and safe opening sequence in the approved drawing.
Catalogue construction: swing-arm multi-bag filter. Source: JINLV Bag Filter Series catalogue. Final values and interfaces require the project quotation and approved drawing.
Design questions for Swing-Arm Bag Filter
These are the points to confirm for this product type. They are questions, not published equipment specifications.
- Confirm lid swing radius and overhead clearance.
- Confirm support, closure and safe maintenance sequence.
- Confirm bag count, connections and seal arrangement.
What is confirmed on this page
The current product name and family come from the supplied classification framework; the photograph comes from the matching JINLV image folder.
Confirm before quotation
- Fluid and solids or filter-medium compatibility
- Normal and peak flow
- Operating pressure and temperature
- Material, seals and surface requirements
- Element count, closure, piping and connection details
- Controls, cleaning sequence and maintenance clearance
No model-specific pressure, flow, size, filtration accuracy or certification scope is inferred from the photograph.
Compare related products
Bag Filter HousingsSide-Entry Bag FilterView product details →
Bag Filter HousingsTop-Entry Bag FilterView product details →

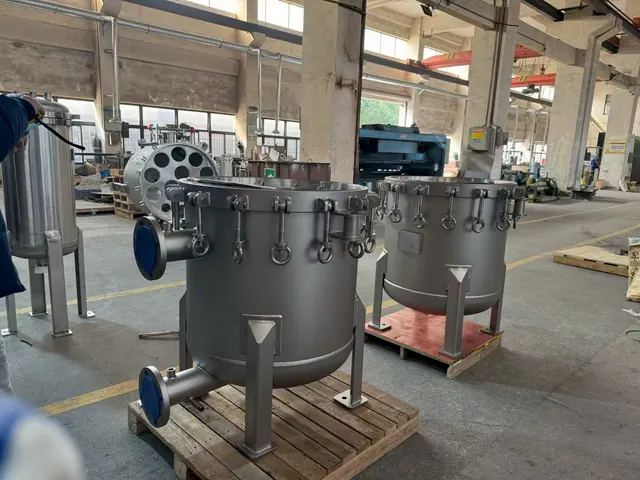

Bag Filter HousingsClamshell Multi-Bag FilterView product details →
Bag Filter HousingsQuick-Open Bag FilterView product details →
Bag Filter HousingsFully Plastic Single-Bag FilterView product details →
Bag Filter HousingsFully Plastic Multi-Bag FilterView product details →Request a fit and drawing review
Share the process duty and available interfaces; JINLV will confirm the proposed build before order.
